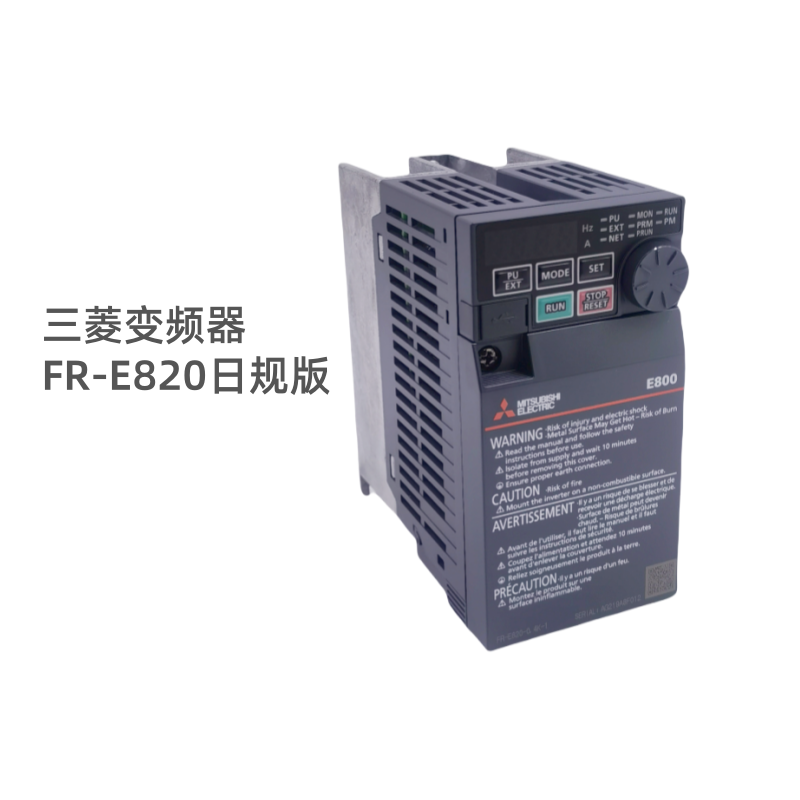

FR-E820-2.2K-1三菱变频器高性价比2.2KW日本原装进口通用型变频器
| 型号 FR-E820-[] | 0.1K | 0.2K | 0.4K | 0.75K | 1.5K | 2.2K | 3.7K | 5.5K | 7.5K | |||||||||||||||||||||||||
| 0008 | 0015 | 0030 | 0050 | 0080 | 0110 | 0175 | 0240 | 0330 | ||||||||||||||||||||||||||
| 适用电机容量 (kW)*1 | LD | 0.2 | 0.4 | 0.75 | 1.1 | 2.2 | 3.0 | 5.5 | 7.5 | 11 | ||||||||||||||||||||||||
| ND | 0.1 | 0.2 | 0.4 | 0.75 | 1.5 | 2.2 | 3.7 | 5.5 | 7.5 | |||||||||||||||||||||||||
| 输出 | 额定容量(kVA)*2 | LD | 0.5 | 0.8 | 1.4 | 2.4 | 3.8 | 4.8 | 7.8 | 12.0 | 15.9 | |||||||||||||||||||||||
| ND | 0.3 | 0.6 | 1.2 | 2.0 | 3.2 | 4.4 | 7.0 | 9.6 | 13.1 | |||||||||||||||||||||||||
| 额定电流 (A)*7 | LD | 1.3(1.1) | 2(1.7) | 3.5(3.0) | 6.0(5.1) | 9.6(8.2) | 12(10.2) | 19.6(16.7) | 30(25.5) | 40(34) | ||||||||||||||||||||||||
| ND | 0.8(0.8) | 1.5(1.4) | 3(2.5) | 5(4.1) | 8(7) | 11(10) | 17.5(16.5) | 24(23) | 33(31) | |||||||||||||||||||||||||
| 过负载电流额定*3 | LD | 120％ 60s、150％ 3s（反时限特性）周边温度 50 ℃ | ||||||||||||||||||||||||||||||||
| ND | 150％ 60s、200％ 3s（反时限特性）周边温度 50 ℃ | |||||||||||||||||||||||||||||||||
| 电压*4 | 3 相 200 ～ 240V | |||||||||||||||||||||||||||||||||
| 再生制动 | 制动晶体管 | 无 | 内置 | |||||||||||||||||||||||||||||||
| 最大制动转矩(ND 基准 )*5 | 150% | 100% | 50% | 20% | ||||||||||||||||||||||||||||||
| 电源 | 额定输入交流电压 ・ 频率 | 3 相 200 ～ 240V 50Hz/60Hz | ||||||||||||||||||||||||||||||||
| 交流电压允许变动 | 170 ～ 264V 50Hz/60Hz | |||||||||||||||||||||||||||||||||
| 频率允许变动 | ±5% | |||||||||||||||||||||||||||||||||
| 额定输入 电流 (A)*8 |
LD | 无直流电抗器 | 1.9 | 3.0 | 5.1 | 8.2 | 13 | 16 | 26 | 37 | 49 | |||||||||||||||||||||||
| 有直流电抗器 | 1.3 | 2.0 | 3.5 | 6.0 | 9.6 | 12 | 20 | 30 | 40 | |||||||||||||||||||||||||
| ND | 无直流电抗器 | 1.4 | 2.3 | 4.5 | 7.0 | 11 | 15 | 23 | 30 | 41 | ||||||||||||||||||||||||
| 有直流电抗器 | 0.8 | 1.5 | 3.0 | 5.0 | 8.0 | 11 | 17.5 | 24 | 33 | |||||||||||||||||||||||||
| 电源设备 容量 (kVA)*6 |
LD | 无直流电抗器 | 0.7 | 1.1 | 1.9 | 3.1 | 4.8 | 6.2 | 9.7 | 14 | 19 | |||||||||||||||||||||||
| 有直流电抗器 | 0.5 | 0.8 | 1.3 | 2.3 | 3.7 | 4.6 | 7.5 | 11 | 15 | |||||||||||||||||||||||||
| ND | 无直流电抗器 | 0.5 | 0.9 | 1.7 | 2.7 | 4.1 | 5.7 | 8.8 | 12 | 16 | ||||||||||||||||||||||||
| 有直流电抗器 | 0.3 | 0.6 | 1.1 | 1.9 | 3.0 | 4.2 | 6.7 | 9.1 | 13 | |||||||||||||||||||||||||
| 保护结构 (IEC 60529) | 封闭型(IP20) | |||||||||||||||||||||||||||||||||
| 冷却方式 | 自冷 | 强制风冷 | ||||||||||||||||||||||||||||||||
| 大致重量 (kg) | 0.5 | 0.5 | 0.7 | 1.0 | 1.4 | 1.4 | 1.8 | 3.3 | 3.3 | |||||||||||||||||||||||||
| 装配端子AM电压输出 | 装配端子FM脉冲输出 | 功率(KW) | |
| 欧规SOURCE逻辑控制 | 欧规SINK控制 | 日规 | |
| FR-E820-0008-4-60 | FR-E820-0008-5-60 | FR-E820-0.1K-1 | 0.1 |
| FR-E820-0014-4-60 | FR-E820-0015-5-60 | FR-E820-0.2K-1 | 0.2 |
| FR-E820-0030-4-60 | FR-E820-0030-5-60 | FR-E820-0.4K-1 | 0.4 |
| FR-E820-0050-4-60 | FR-E820-0050-5-60 | FR-E820-0.75K-1 | 0.75 |
| FR-E820-0080-4-60 | FR-E820-0080-5-60 | FR-E820-1.5K-1 | 1.5 |
| FR-E820-0110-4-60 | FR-E820-0110-5-60 | FR-E820-2.2K-1 | 2.2 |
| FR-E820-0174-4-60 | FR-E820-0175-5-60 | FR-E820-3.7K-1 | 3.7 |
| FR-E820-0240-4-60 | FR-E820-0240-5-60 | FR-E820-5.5K-1 | 5.5 |
| FR-E820-0330-4-60 | FR-E820-0330-5-60 | FR-E820-7.5K-1 | 7.5 |
| FR-E820-0470-4-60 | FR-E820-0470-5-60 | FR-E820-11K-1 | 11 |
| FR-E820-0600-4-60 | FR-E820-0600-5-60 | FR-E820-15K-1 | 15 |
| FR-E820-0760-4-60 | FR-E820-0760-5-60 | FR-E820-18.5K-1 | 18.5 |
| FR-E820-0900-4-60 | FR-E820-0900-5-60 | FR-E820-22K-1 | 22 |
| 协议组A | 协议组B | 协议组C | |
| FR-E820-0008EPA-60 | FR-E820-0008EPB-60 | FR-E820-0008EPC-60 | 0.1 |
| FR-E820-0015EPA-60 | FR-E820-0015EPB-60 | FR-E820-0015EPC-60 | 0.2 |
| FR-E820-0030EPA-60 | FR-E820-0030EPB-60 | FR-E820-0030EPC-60 | 0.4 |
| FR-E820-0050EPA-60 | FR-E820-0050EPB-60 | FR-E820-0050EPC-60 | 0.75 |
| FR-E820-0080EPA-60 | FR-E820-0080EPB-60 | FR-E820-0080EPC-60 | 1.5 |
| FR-E820-0110EPA-60 | FR-E820-0110EPB-60 | FR-E820-0110EPC-60 | 2.2 |
| FR-E820-0175EPA-60 | FR-E820-0175EPB-60 | FR-E820-0175EPC-60 | 3.7 |
| FR-E820-0240EPA-60 | FR-E820-0240EPB-60 | FR-E820-0240EPC-60 | 5.5 |
| FR-E820-0330EPA-60 | FR-E820-0330EPB-60 | FR-E820-0330EPC-60 | 7.5 |
| FR-E820-0470EPA-60 | FR-E820-0470EPB-60 | FR-E820-0470EPC-60 | 11 |
| FR-E820-0600EPA-60 | FR-E820-0600EPB-60 | FR-E820-0600EPC-60 | 15 |
| FR-E820-0760EPA-60 | FR-E820-0760EPB-60 | FR-E820-0760EPC-60 | 18.5 |
| FR-E820-0900EPA-60 | FR-E820-0900EPB-60 | FR-E820-0900EPC-60 | 22 |
넶浏览量：0
-
电压三相220V
-
产地日本
-
产品名称变频器
- 型号规格
参考价：
¥
1500.00
FR-E820-2.2K-1 日本原装三菱变频器可能具有以下一些优点：
1. 高性能：能够实现精确的电机速度控制，满足不同应用场景的需求。
2. 稳定性高：具有可靠的运行性能，减少故障和停机时间。
3. 节能效果：通过优化电机的运行，有助于降低能耗，提高系统效率。
4. 多功能：具备多种控制模式和功能，如矢量控制、V/F 控制等，以适应不同的负载类型。
5. 易于调试和操作：用户界面友好，参数设置和调试相对简便。
6. 适应恶劣环境：可能具备一定的防护等级和抗干扰能力，适应工业环境中的各种恶劣条件。
需要注意的是，具体的优点还会受到使用场景、安装调试以及配套设备等多种因素的影响。
1. 高性能：能够实现精确的电机速度控制，满足不同应用场景的需求。
2. 稳定性高：具有可靠的运行性能，减少故障和停机时间。
3. 节能效果：通过优化电机的运行，有助于降低能耗，提高系统效率。
4. 多功能：具备多种控制模式和功能，如矢量控制、V/F 控制等，以适应不同的负载类型。
5. 易于调试和操作：用户界面友好，参数设置和调试相对简便。
6. 适应恶劣环境：可能具备一定的防护等级和抗干扰能力，适应工业环境中的各种恶劣条件。
需要注意的是，具体的优点还会受到使用场景、安装调试以及配套设备等多种因素的影响。
